Project
Student 's name
Advisor
Department
Terminal
Deflection Testing Equipment
Mr.
Somjai
Santalunai
Mr.
Sanchai Kacwscvmwong
Mr.
Adisak
Phairoa
Mr. Surachai
Kongmancc
Mr.
Visit
Ja tu raman
Assistant Professor Bor iboon
Sanohlam
Mechan ica l Technology
200 1

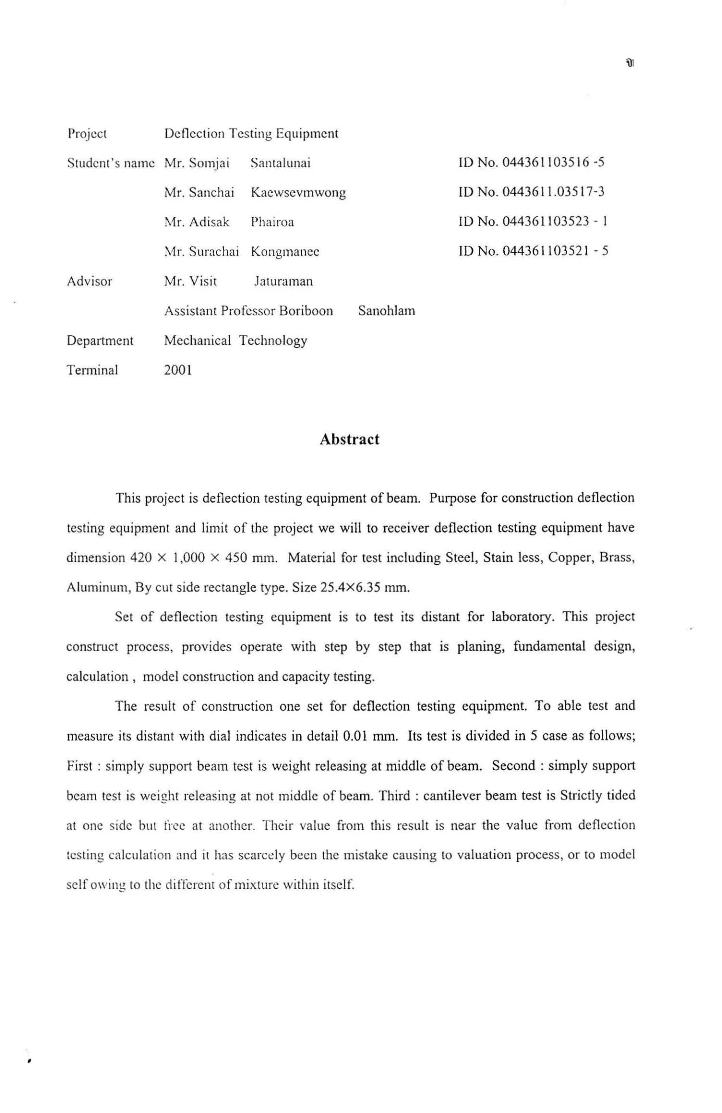

Abstract
ID No. 044361103516 -5
ID No. 044361 1.0351 7-3
ID No. 044361103523 - I
ID No. 044361 10352 1 - 5
~I
This project is deflection testing equipment of beam. Purpose for construction deflect ion
testing equipment and limit of the project we will to receiver deflection testing equipment have
dimension 420 X 1,000 X 450 mm. Material for test including Steel, Stain less, Copper, Brass,
Aluminum, By cut side rectangle type. Size 25.4X6 .35 mm.
Set of deflection testing equipment is to test its distant for laboratory. This project
construct process, provides operate with step by step that is planing, fundamental design,
calculation, model construct ion and capacity testing.
The result of construction one set for deflection testing equipment. To able test and
measure its di stant with dial indicates in detail 0.01 mrn. Its test is divided in 5 case as follows;
First: simply support beam test is weight releasing at middle of beam. Second: simply support
beam test is weight releas ing at not middle of beam. Third: cant ilever beam test is Strictly tided
at one side but free at another. Thei r value from this result is near the va lue from deflection
testing calcu lation and
it
has scarcely been the mistake causing to valuation process, or to model
self owi ng to the different
of mixture
within itse lf.
